Welded Wire Mesh Panels

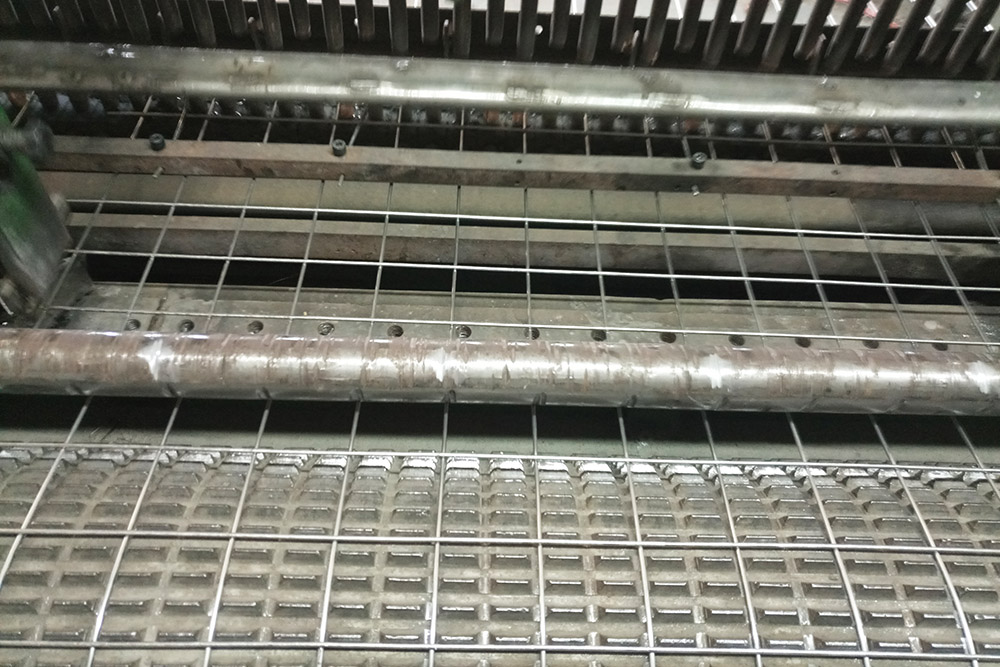

Welded wire mesh is to weld parallel horizontal wires and vertical wires through resistance welding to form a grid metal panels. According to the use environment or customer requirements, the surface of the welded mesh can be galvanized or plastic coated to avoid rust or corrosion and increase the service life. Due to the welded structure, the size of the opening is more uniform than that of a woven wire mesh.
Available Materials
Welded wire fabric is usually made of mild steel or stainless steel,
- The material grades of mild steel including ASTM A36 steel, AISI 1018, 1020; S235JR, S355, etc.
- The material grades of stainless steel including AISI 302, 304, 304L, 316, 316L, 321, etc.
Surface Treatment
Stainless steel has excellent corrosion resistance in natural environments, so surface treatment is usually not required unless there is a special purpose.
Except for concrete reinforcement mesh, mild steel welded mesh usually needs to be galvanized or plastic coated to avoid rust or corrosion of the material.
Applications of Welded Wire Mesh
Welded wire mesh is widely used in construction, agriculture, transportation, mining and other industries. Such as hardware cloth, construction plaster mesh, machine protective covers, animal and livestock fences, walkways and stair railings, poultry cages, handicrafts, wire mesh kitchen ware, surgical instrument baskets, stainless steel fry basket, battery cage poultry equipment, etc.
Specifications
Other specifications can be customized according to customer requirements
Type | Mesh Size | Diameter | Weight (Approximate) | |||
mm | in. | mm | in. | kg/m2 | lb/100 ft2 | |
Woven | 3.2 | 1/8 | 0.439 | 0.0173 | 1.86 | 38 |
Welded | 6.4 | 1/4 | 0.551 | 0.0217 | 1.66 | 34 |
Woven | 6.4 | 1/4 | 0.655 | 0.0258 | 1.86 | 38 |
Woven | 8.5 | 1/3 | 0.805 | 0.0317 | 1.77 | 36 |
Welded | 8.5 | 1/3 | 0.805 | 0.0317 | 0.65 | 13 |
Welded | 10.6 | 3/7 | 0.899 | 0.0354 | 1.21 | 25 |
Welded | 12.7 | 1/2 | 0.655 | 0.0258 | 1.86 | 38 |
Welded | 12.7 | 1/2 | 0.805 | 0.0317 | 1.66 | 34 |
Woven | 12.7 | 1/2 | 1.04 | 0.041 | 0.78 | 16 |
Welded | 12.7 | 1/2 | 1.04 | 0.041 | 2.54 | 52 |
Welded | 12.7 | 1/2 | 1.57 | 0.062 | 1.22 | 25 |
Welded | 12.7 x 25.4 | 1/2 x 1 | 1.04 | 0.041 | 1.32 | 27 |
Welded | 12.7 x 25.4 | 1/2 x 1 | 1.45 | 0.057 | 0.70 | 14 |
Welded | 12.7 x 25.4 | 1/2 x 1 | 1.57 | 0.062 | 0.47 | 10 |
Welded | 15.9 | 5/8 | 1.20 | 0.047 | 1.11 | 23 |
Welded | 19.0 | 3/4 | 1.04 | 0.041 | 1.11 | 23 |
Welded | 19.0 | 3/4 | 1.45 | 0.057 | 1.27 | 26 |
Welded | 19.0 | 3/4 | 1.57 | 0.062 | 1.22 | 25 |
Welded | 25.4 x 12.7 | 1 x 1/2 | 1.45 | 0.057 | 0.69 | 14 |
Welded | 25.4 x 12.7 | 1 x 1/2 | 1.57 | 0.062 | 1.07 | 22 |
